Cylinder liners for Diesel engines: advantages and use

Repair parts - 17/02/2021

How to extend engine life: the importance
of liners for the drive system

Correct engine operation is one of the fundamental factors for ensuring the performance of earth moving machines like excavators, mini-excavators, bulldozers, front end loaders, and dumpers, which are typically subjected to intense operation.

Choosing and carefully maintaining engine components can extend the operating life of machines, keep down maintenance costs, and increase productivity by reducing breakdown times. This article illustrates how and why cylinder liners, also known as cylinder sleeves, can make a valuable contribution.

Types of cylinder liners and their advantages

Cylinder liner ITR Komatsu 6240 21 2220 Cylinder liner ITR Caterpillar 1979322 Cylinder liner ITR Caterpillar 1105800























Liners are cylindrical surfacing elements capable of retaining a thin film of oil on the inside surface. When inserted into the cylinders of the engine block, they protect it from wear and from the sliding action of the pistons. The engine blocks of industrial machines, unlike less demanding applications, normally have cylinder liners rather than allowing the pistons to move in direct contact with the walls of the engine block.

There are two main types of liner. The first type has no direct contact with the wall of the engine block cylinder, and the liner is washed with a flow of cooling liquid. For this reason they are called “wet" liners. The second type are known as “dry” liners, or “sleeves“, and are thin bushings fitted inside the engine block with the outside wall in direct contact with the engine block cylinder.


Engine manufacturers use lined cylinders because of the advantages this system offers, the main reasons being:

  • Greater resistance. Making liners separately from the engine block allows the use of special higher performance materials than those used for the construction of the block itself. Liners are generally made in special cast iron alloys containing elements with natural lubricating properties, like graphite. Other components are added like chrome, vanadium, and molybdenum to help ensure resistance to corrosion and wear caused by high temperatures.

  • Easier maintenance. When liners are worn they can be replaced more easily than changing an entire cylinder block.

  • Higher thermal conductivity. At operating temperatures the liners heat up more than the cylinders and must be able to expand in both diameter and length. If they were cast together with the cylinders, the resulting thermal loading would be high enough to fracture the materials.

  • Less risk of defects. The more complex a casting, the more difficult it is to achieve perfectly even surfaces with low residual stresses.



What characteristics do engine cylinder liners need for good performance?

Liners are subjected to many types of loading pressures:

  • mechanical, caused by combustion pressure;
  • thermal, caused by the high temperatures of the combustion process;
  • wear, from three main factors:
    • abrasion, which depends on the efficiency of the air and oil filters,
    • corrosion, caused by combustion by-products,
    • friction or rubbing, caused by poor lubrication.

For all these reasons the manufacturing process for these components is very important and their design must satisfy precise specifications in order to protect the engine and extend its operating life. These include:

  • high resistance and anti-corrosion properties,
  • low friction,
  • high precision.

A fundamental feature of liners for reducing friction and extending engine life is a criss-cross pattern of grooves on the inside wall. This grooved surface maintains an adequate quantity of oil on the inside wall of the liner, which ensures sufficient lubrication at the contact point between the piston rings and the liner. The correct angle of intersection for the groove of the walls is generally estimated at about 45°, since this promotes even lubrication and consequently extends the duration of the surfaces. However, there are cases in which different angles are created for specific materials and forms of use.

Finally, other factors that help to increase resistance, and limit wear on the liner surfaces are rolling of the flange and the anti-corrosive surfacing of the outside wall.

How are liners correctly fitted inside cylinders?

The main steps for correctly fitting liners inside cylinders are listed below, along with a few precautions and techniques to avoid faults and premature wear.



  1. Clean the cylinder block thoroughly since trapped dirt can cause the flange to break.

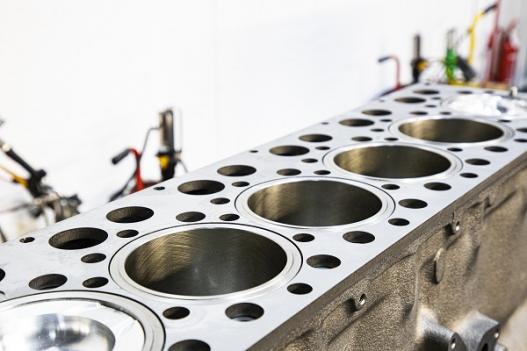

    Cylinder liner ITR Usco 1

  2. Check whether there are any burrs or projecting materials and remove them to avoid problems with the gaskets.

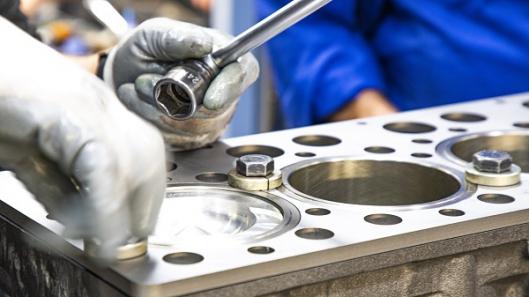

    Cylinder liner ITR Usco 3

  3. Insert the liners into the cylinder block without gaskets or other filler elements and check that the flange protrudes correctly, rotating it if necessary until the correct position is found.

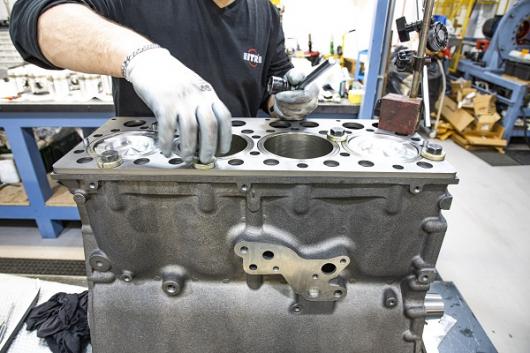

    Cylinder liner ITR Usco 4

  4. When the position of the sleeve is correct, remove it after putting alignment marks on both the sleeve and cylinder block so that it can be reinserted in the same position.

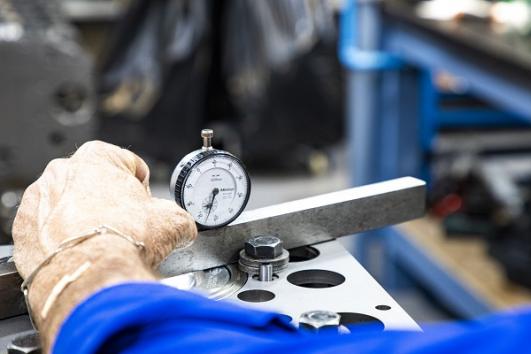

    Cylinder liner ITR Usco 5

  5. Insert the gaskets avoiding any twisting which could cause distortion of the sleeve, generate friction, or reduce the play between the piston and sleeve.
    Many installers advise that the gaskets need to be lubricated or greased before installation in order to simplify the process. However, the correct method is to install the gaskets “dry” and insert a round rod like a screwdriver and move it around the entire circumference of the gasket to ensure it adheres evenly. Only now should the various components be lubricated.

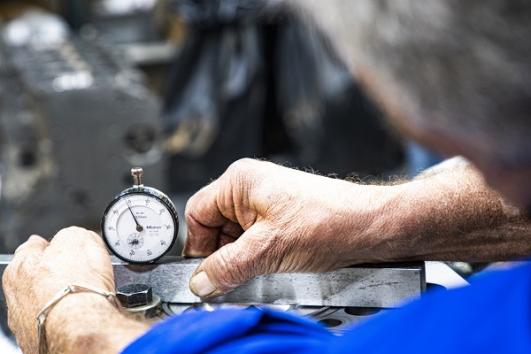

    Cylinder liner ITR Usco 6

  6. Immerse the gasket in clean SAE 30 oil. Fit it on the sleeve, which must be inserted into the cylinder block immediately before the gasket expands.

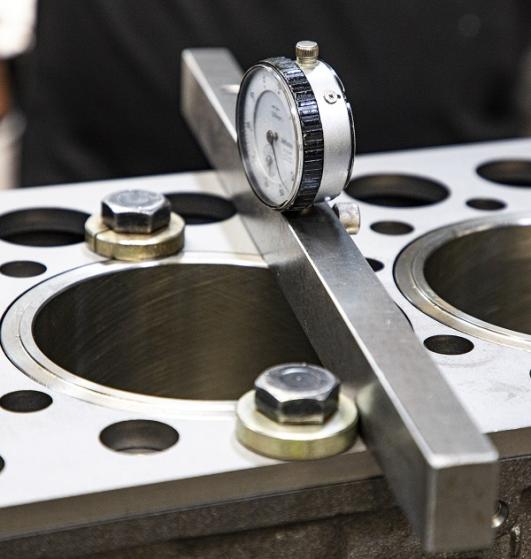

    Cylinder liner ITR Usco 7

  7. Check that the reference mark on the sleeve made previously is aligned with the mark on the block. Use the special tool to push the sleeve into position.

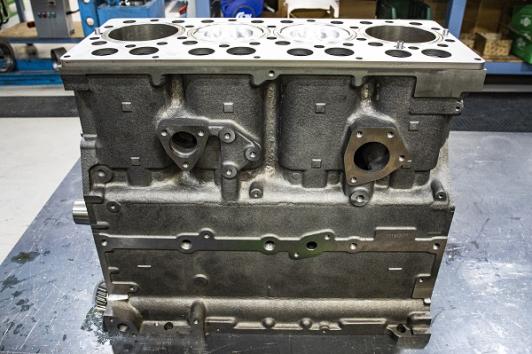

    Cylinder liner ITR Usco 8

  8. Ripetere i passaggi per tutte le canne a disposizione.
  1. Repeat the same steps for all the sleeves being fitted.

Sleeves for ITR cylinders

The choice and correct use of just one small component can make all the difference for the performance and operating life of earth moving machines. This is why it is vital to find a reliable expert partner.
ITR Usco offer a wide range of sleeves, with bores from 94 mm to 170 mm, for Caterpillar®, Komatsu®, Volvo®, Hitachi®, and JCB®Contact our staff for more information on the most suitable type and materials for your applications.
